Everyoneﾠneeds a good set of Rubber Feet !

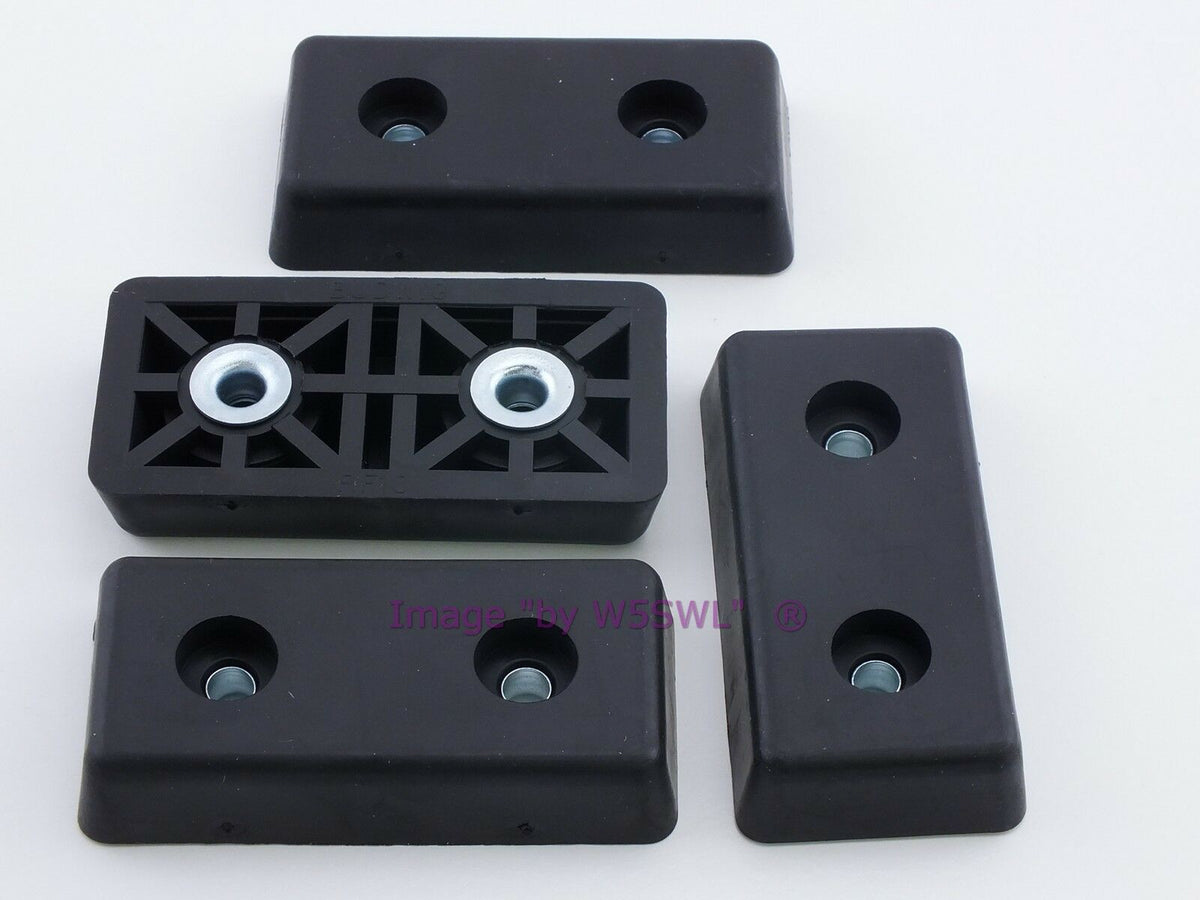

Perfectﾠas replacement feet for ham gear, test equipment and other uses. Excellent for home built projects. Superb non-marking qualities and outstanding resistance to stress cracking. Support bushing absorbs the total fastener load, allows the foot to be mounted using a variety of screws or rivets without distorting the foot.

Measurements in inches (please see the chart in the image section):

A (Height) :ﾠ.528
B (Length) :ﾠ2.777
C (Length) :ﾠ2.629
D (Width) :ﾠ1.375
E (Recess Diameter) : .472
F (Recess Depth) : .202
G (Outer Wall Thickness) : .172
H (Bushing ID / Screw Size) : .215, #10 TH*
I (Mounting Hole Centers) : 1.375

*TH = Truss Head Screw, RH = Round Head Screw (screws not included)

Quantity: 1 set of 4
