Fuses, Circuit Breakers & Fuse Holders
W5SWL Electronics offers electrical fuses, circuit breakers, fuse holders, and related components for protecting electrical and electronic equipment against excessive current. Applications include amateur radio equipment, DC power supplies, automotive and marine electrical systems, communications equipment, test instruments, and general electronic repair and maintenance.
Glass Cartridge Fuses – AGC and MDL

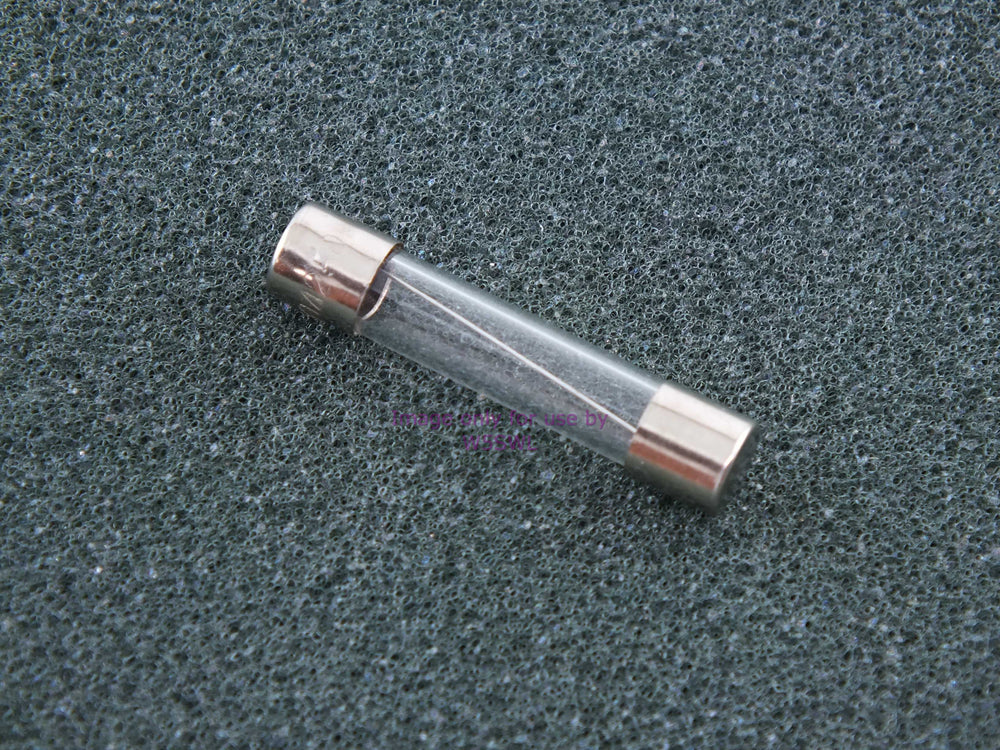

AGC Fast-Acting Glass Fuses: AGC fuses are cylindrical glass cartridge fuses typically measuring 1/4 inch in diameter by 1-1/4 inches long (approximately 6.3 × 32 mm). They have metal end caps on both ends and a visible internal fusible element. AGC fuses are generally fast-acting and are used in electronic equipment and circuits requiring prompt interruption of excessive current.
MDL Time-Delay Glass Fuses: MDL fuses typically have the same 1/4 × 1-1/4-inch cylindrical glass body and metal end caps as AGC fuses. Their internal elements are designed to tolerate brief startup or inrush currents. MDL fuses are commonly used in transformer-powered equipment, motors, and circuits where short-duration current surges are expected. Although AGC and MDL fuses may fit the same holder, their operating characteristics are different.
Automotive Blade Fuses – ATC, ATO, Mini, Low-Profile Mini, Micro, Micro2 and Micro3
ATC and ATO Standard Blade Fuses: These fuses have a rectangular plastic body approximately 19 mm wide and 19 mm tall overall, with two flat metal blade terminals extending from the bottom. The body is approximately 5 mm thick. They are commonly color-coded by amperage and have their current rating marked on top. ATC generally identifies an enclosed-body construction, while ATO traditionally identifies an open-body construction. Both belong to the standard automotive blade-fuse size family.
Mini Blade Fuses (ATM): Mini blade fuses are approximately 11 mm wide, 16 mm tall overall, and 4 mm thick. They have two closely spaced metal blade terminals extending below a compact plastic body. They are commonly found in automotive fuse panels, mobile equipment, and accessory circuits where space is limited.
Low-Profile Mini Blade Fuses: Low-Profile Mini fuses are approximately 11 mm wide and 9 mm tall overall, with a body thickness of approximately 4 mm. Unlike standard Mini fuses, their metal terminals extend only a short distance below the plastic housing. This produces a noticeably shorter overall profile, allowing installation in shallow fuse panels and low-clearance electrical compartments.
Micro Blade Fuses: The term Micro is sometimes used broadly for miniature automotive blade fuses rather than identifying one specific physical configuration. These fuses have narrow plastic bodies and closely spaced terminals. When selecting a replacement, determine whether the application requires Micro2, Micro3, or another specifically designated miniature fuse style.
Micro2 Blade Fuses: Micro2 fuses are approximately 9.1 mm wide, 15.3 mm tall overall, and 3.8 mm thick. They have a narrow plastic body with two flat metal blade terminals extending from the bottom. Their compact dimensions and close terminal spacing distinguish them from standard Mini and Low-Profile Mini fuses. Micro2 fuses are commonly used in modern automotive electrical systems.
Micro3 Blade Fuses: Micro3 fuses are approximately 14 mm wide, 18 mm tall overall, and 4 mm thick. Their most distinctive physical characteristic is the presence of three metal blade terminals rather than two. The three-terminal arrangement allows one fuse assembly to provide overcurrent protection for two circuits sharing a common terminal. Micro3 fuses require a specifically designed three-terminal fuse holder and are not interchangeable with Micro2 fuses.
Circuit Breakers and Fuse Holders

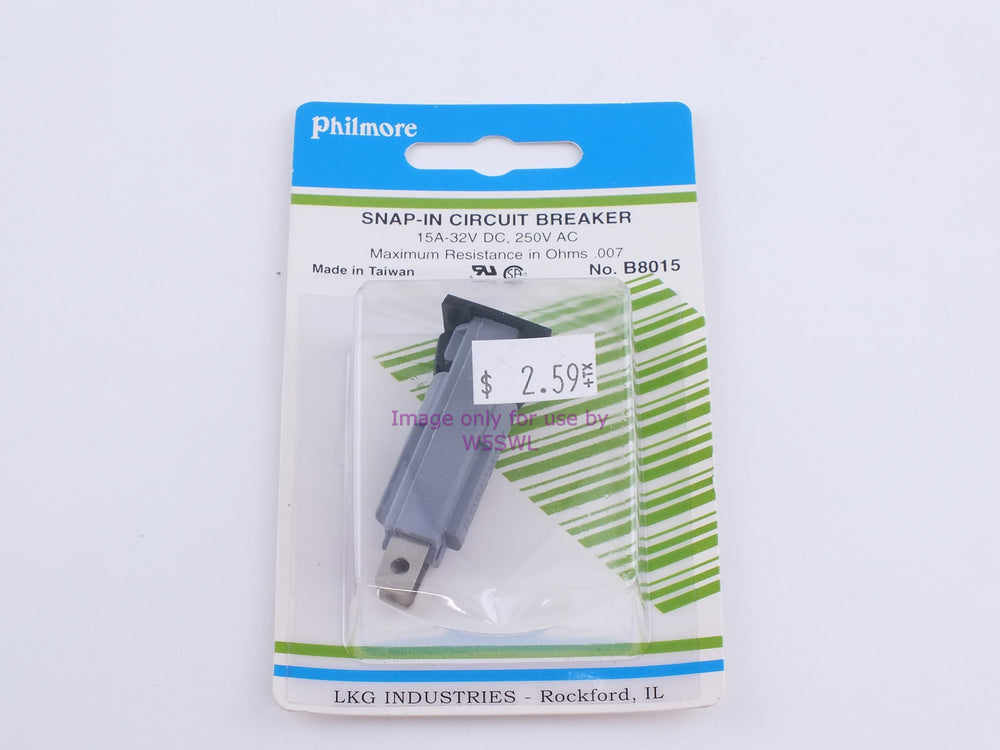

Circuit Breakers: Circuit breakers provide overcurrent protection and may be manually reset, automatically reset, or equipped with switching functions depending on their design. Physical configurations include compact automotive blade-style breakers, metal-can thermal breakers, panel-mounted push-button breakers, and stud-terminal breakers. Mounting style, terminal arrangement, current rating, voltage rating, and trip characteristics must be considered when selecting a replacement.

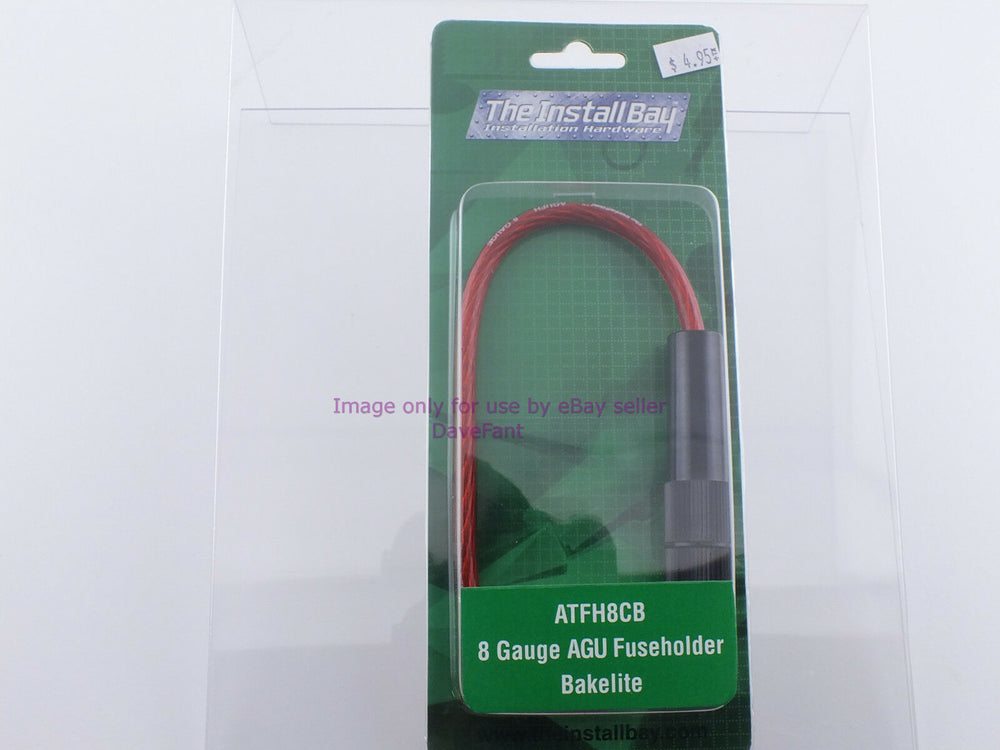

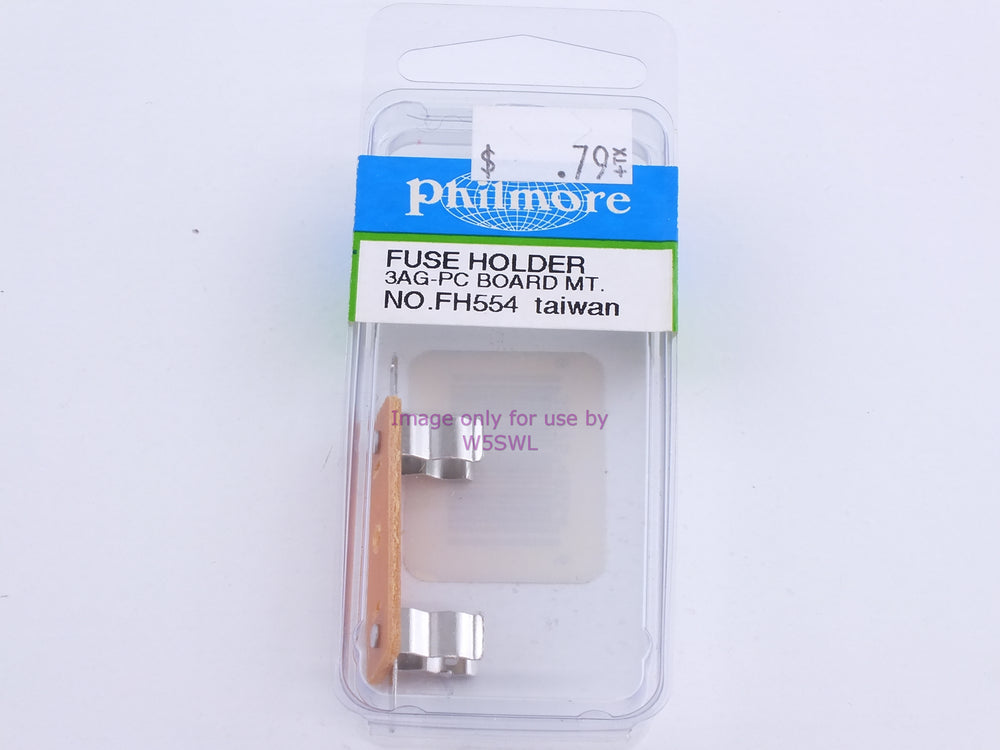

Fuse Holders: Fuse holders are available in several physical configurations, including inline wire holders, panel-mounted cartridge holders, printed circuit board holders, automotive blade-fuse sockets, and multi-position fuse blocks. Cartridge fuse holders must match the required fuse diameter and length. Automotive fuse holders must match the appropriate blade-fuse family, terminal spacing, and current rating. Some holders include protective covers, mounting tabs, or weather-resistant construction.
Fuse Selection, Compatibility and Electrical Protection
When selecting a fuse or circuit breaker, verify the required current rating, voltage rating, physical dimensions, terminal configuration, interrupting capacity, and operating characteristics. Fast-acting and time-delay fuses are not automatically interchangeable, even when their dimensions are identical.
Automotive blade fuses with similar shapes may have different terminal spacing, body heights, and contact arrangements. Standard ATC/ATO, Mini, Low-Profile Mini, Micro2, and Micro3 fuses should be matched to the appropriate holder and equipment specifications.
Always replace a fuse or circuit breaker with a device having the electrical ratings, operating characteristics, and physical configuration specified by the equipment manufacturer. Never bypass overcurrent protection or substitute a higher amperage rating simply to prevent repeated fuse operation.
Browse the W5SWL Electronics selection of fuses, circuit breakers, fuse holders, and related electrical protection components for equipment repair, maintenance, and new installations.
68 products
