N Female Coax Connector Crimp LMR-600 Coax Cables by W5SWL
N Female Coax Connector Crimp LMR-600 Coax Cables by W5SWL
- Vendor
- by W5SWL
$7.99
We sell the good stuff !

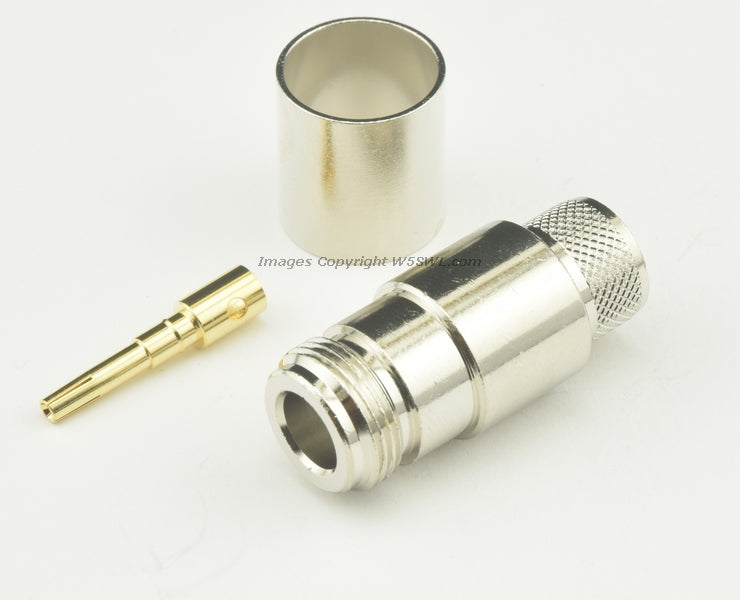

N Female Crimp Connector
Premium Connector Series
Premium Connector Series
Product Details
| Brand | by W5SWL | |
| Model | 721405428403 | |
| Side A | N Female |
|
| Side B | NA | |
| Fits Cable Type | LMR-600 | |
| Dielectric | Teflon | |
| RF Pin Plating | Gold | |
| Body Plating | Nickel | |
| Impedance Ohms | 50 | |
| Other Detail | NA | |
| Package Quantity | 1 |
Large series coax and connectors (LMR-600, Hardline, etc) are best used with jumpers rather than connecting direct to equipment due to torque or leverage from the line. Large cables are not very flexible and temperature related expansion and contraction cause damage to the chassis connector, RF connector, work loose, etc. It is best on larger cables to not connect direct to the antenna or equipment but to use a flexible jumper between the antenna or device and the coax line. Some of these issues such as the expansion and contraction are not readily apparent with short duration transmissions but for longer duration, higher power modes (such as LPFM, FM, FT8, etc) it will show up as intermittent operation, burned or charred connections, etc. Let a more flexible jumper absorb the coax pressures and movement.
