W5SWL Brand 7/16 DIN Connector Female Chassis Mount up to LMR-600 Size Solder Cup
W5SWL Brand 7/16 DIN Connector Female Chassis Mount up to LMR-600 Size Solder Cup
- Vendor
- by W5SWL
$22.95
We sell the good stuff !
7/16 DIN Female Chassis Mount
Premium Adapter Series
Premium Adapter Series
Product Details
| Brand | by W5SWL | |
| Model | 721405426805 | |
| Side A | 7/16 DIN Female |
|
| Side B | NA | |
| Fits Cable Type | Solder cup accepts coax sizes up to LMR-600 |
|
| Dielectric | Teflon | |
| RF Pin Plating |
Gold |
|
| Body Plating | Nickle | |
| Impedance Ohms | 50 | |
| Other Detail | 4 Hole Chassis Mount. Hole Spacing approx 1" ctr to ctr across flat side |
|
| Package Quantity | 1 |

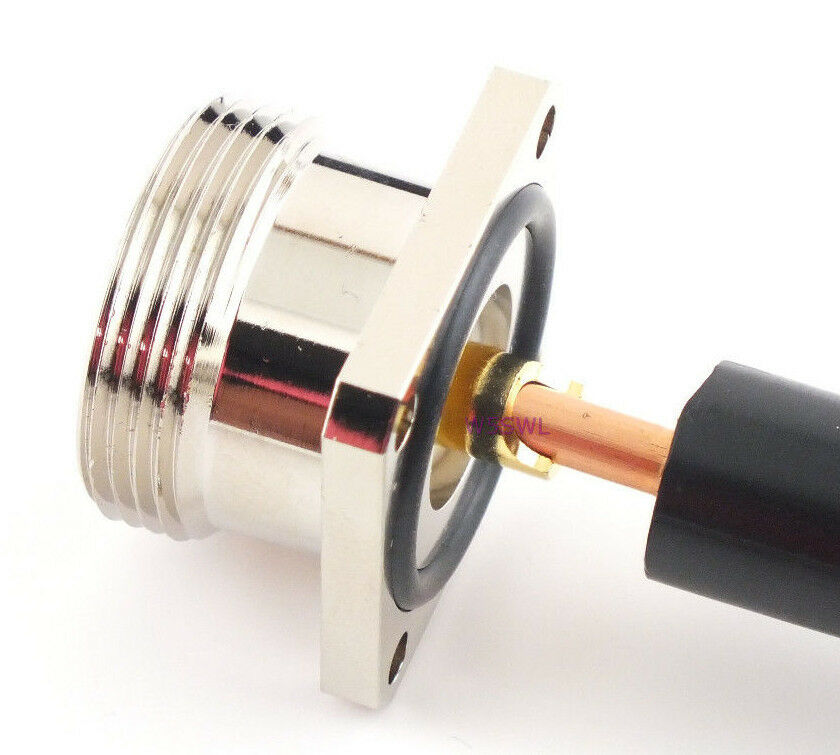

A 7/16 DIN Female designed for direct connection and use with cable sizes up to LMR-600 center wire diameter! Perfect for use with Hi Power Ham gear, VHF and UHF equipment, LPFM use and other important applications requiring cabling sizes up to LMR-600 diameters. Includes the O-RIng as shown. Has a nice thick flange of approx .16" and 1.26" side to side. Shown in image with LMR-600 center wire (Cable not included).
