JFW 50P-1300 Programmable Attenuator SMA 800-2200 MHz 0-63.75 dB (374515 0411)
JFW 50P-1300 Programmable Attenuator SMA 800-2200 MHz 0-63.75 dB (374515 0411)
- Vendor
- JFW
$19.95
We sell the good stuff !
Warehouse Finds and Deals

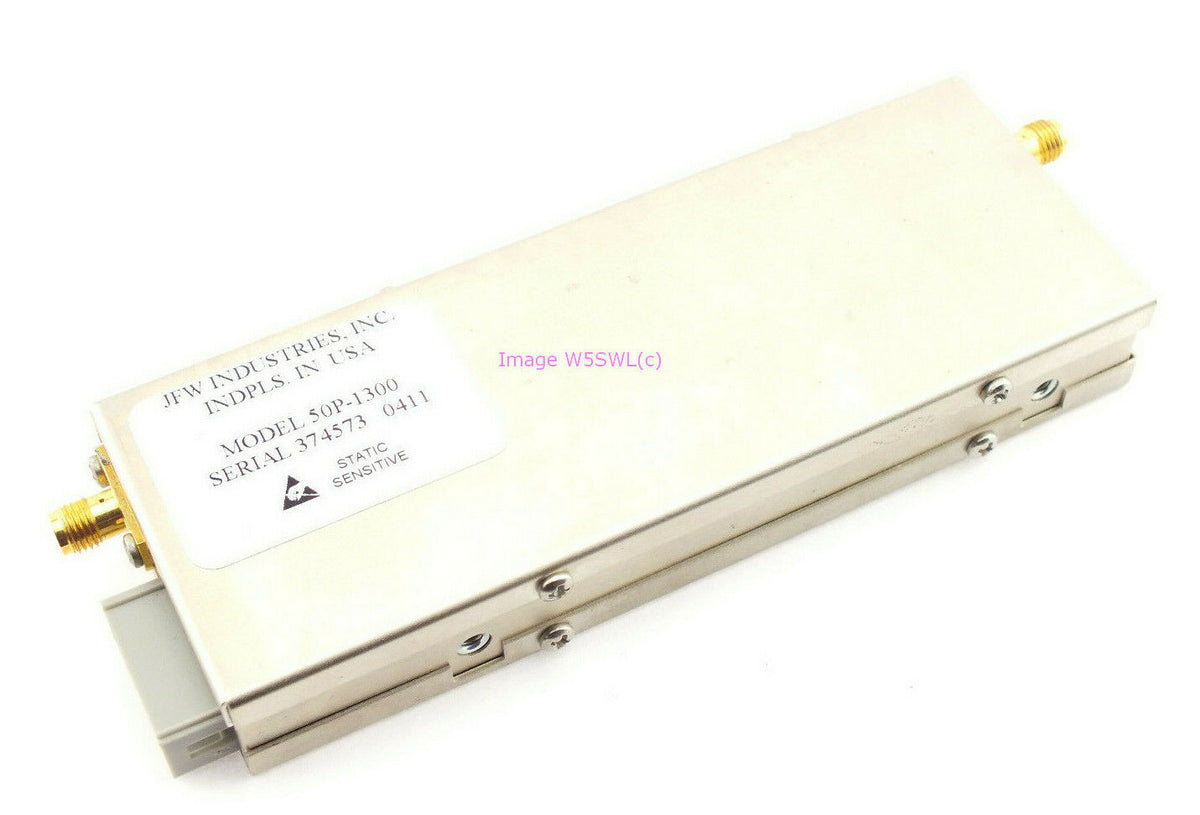

JFW 50P-1300 Solid State Programmable Attenuator. SMA Connectors. Frequency range 800 to 2200 MHz. 50 Ohms, attenuation range 0 to 63.75 dB in 0.25 dB steps. Attenuation steps 0.25, 0.5, 1, 2, 4, 8, 16 and 32 dB. RF input power +20 dBm. Switching speed 5 microseconds. +5vdc and control is TTL Low for thru path and TTL High for attenuation. JFW has spec sheet online. Image shown is master image, each may have various stickers, serial number, etc on case. READ - one of the sma connectors has a bumped flat spot, it will need to be dressed or replaced.
We have not performed any tests or checks. Sold for parts or repair only and as-is as-found with no return. As shown. Packed well to make the trip.
