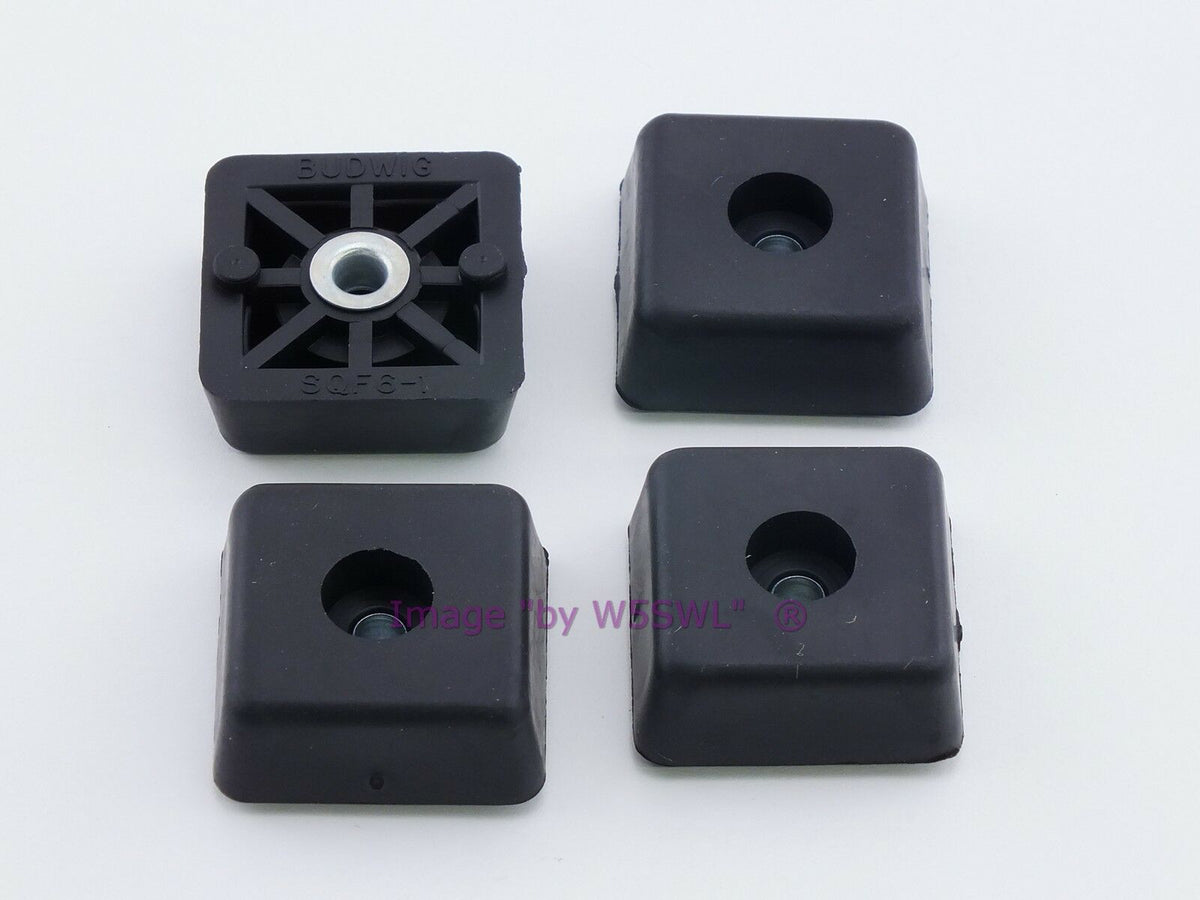

Everyone needs a good set of Rubber Feet !

Perfect as replacement feet for ham gear, test equipment and other uses. Excellent for home built projects. Superb non-marking qualities and outstanding resistance to stress cracking. Support bushing absorbs the total fastener load, allows the foot to be mounted using a variety of screws or rivets without distorting the foot.

Measurements in inches (please see the chart in the image section):

A (Height) : .390
B/D (Width) : 1.00
C (Width) : .890
E (Recess Diameter) : .333
F (Recess Depth) : .187
G (Outer Wall Thickness) : .125
H (Bushing ID / Screw Size) : .148, #6 TH*
I (Lug Diameter) : .150

Lug Diameter Hole Size needed : .154 (#23 Drill)
Distance between Lugs (center to center) : .781
Distance between Lug and Mounting Hole (center to center) : .390

*TH = Truss Head Screw, RH = Round Head Screw (screws not included)

Quantity: 1 set of 4
