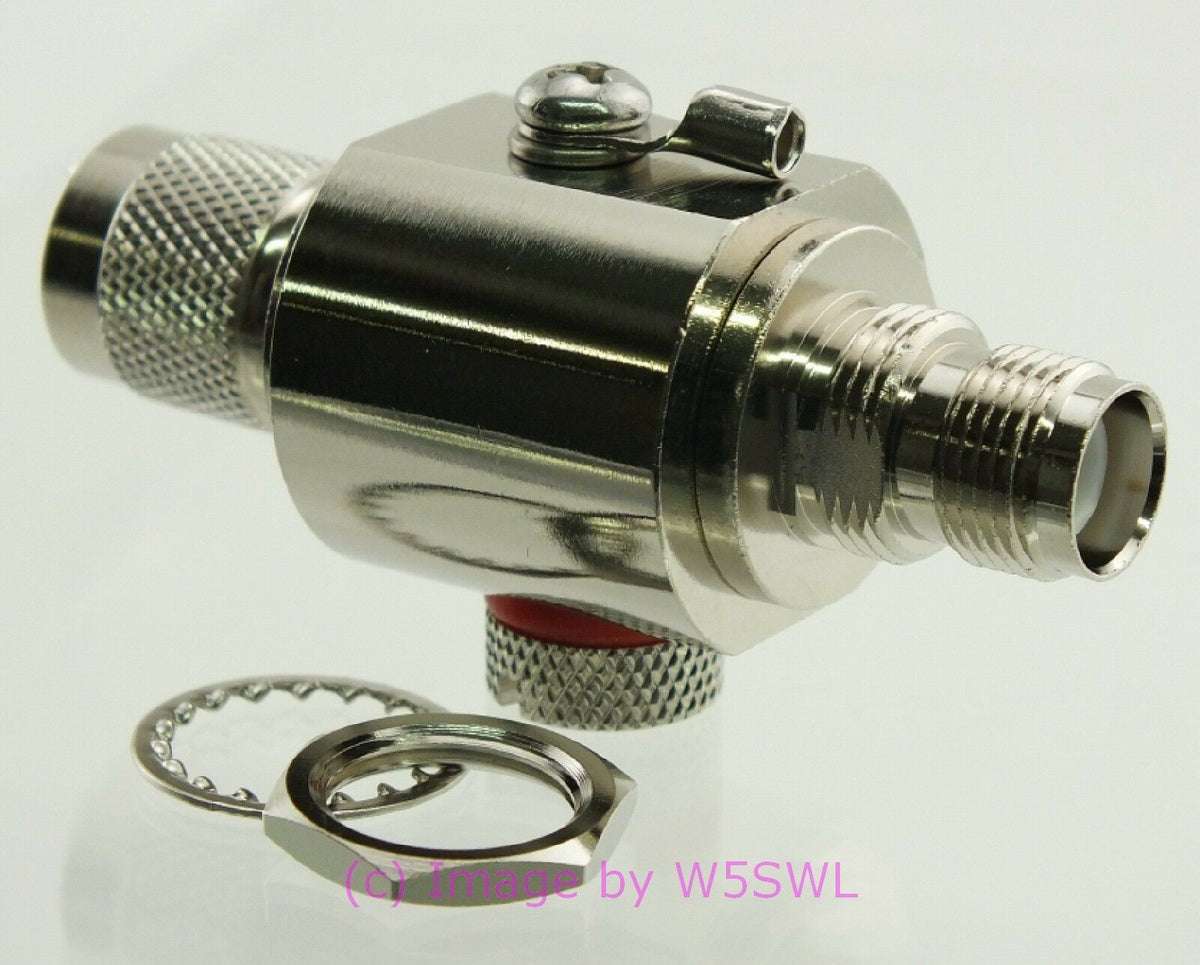

W5SWL Brand Surge EMP Protector Lightning Arrester Gas Tube RP TNC Male Female 6GHz
W5SWL Brand Surge EMP Protector Lightning Arrester Gas Tube RP TNC Male Female 6GHz
- Vendor
- by W5SWL
$23.95
... We sell the good stuff !
6 GHz Gas Tube Surge Protection
Premium Protection Devices
Premium Protection Devices
Product Details
| Brand | by W5SWL | |
| Model | 721405424177 | |
| Side A |
TNC RP Male |
|
| Side B | TNC RP Female |
|
| Gas Tube Voltage | 230 | |
| Upper Frequency Limit | 6 GHz | |
| Loss at 1GHz | .15 ~ .2 dB | |
| Impedance Ohms | 50 | |
| Other Detail | Bi-Directional. Bulkhead or inline with ground wire attachment | |
| Package Quantity | 1 |
RP or Reverse Polarity connections are center pin gender reversed and will NOT fit regular connectors. The male connector will have a female center pin and the female connector will have a male center pin.
Precision protector utilizes a non replaceable gas tube design to ensure maximum factory tuned performance at 6 GHz. Factory set for low loss and low VSWR.
